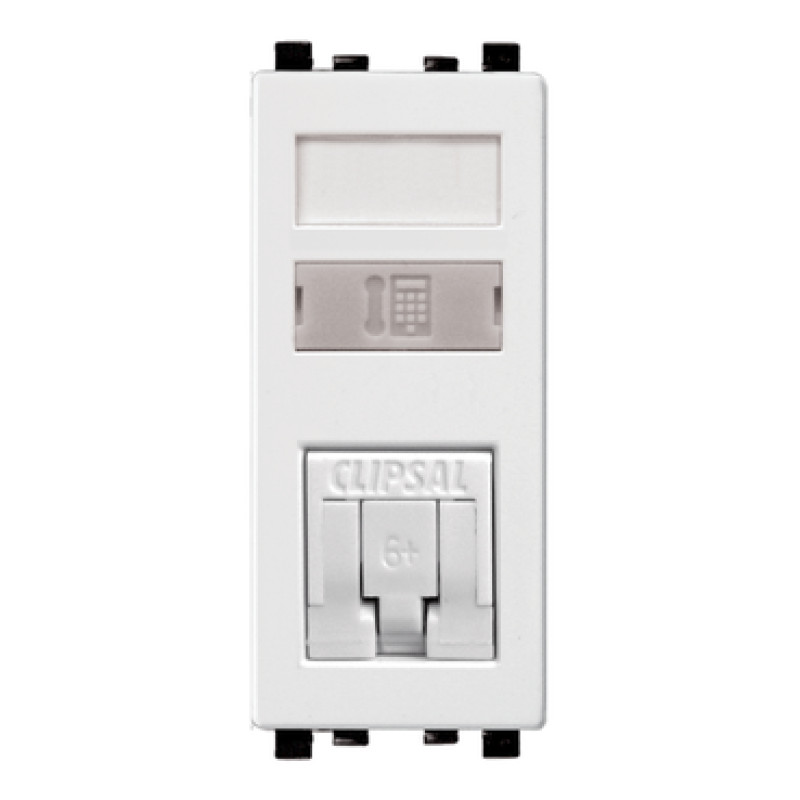

Schneider ZENcelo: Cat 6 RJ45 Data Outlet with shutter

1568 - 30% Off ₹ 2240

Inclusive of all taxes

Product will be deliver within 3-5 days.

Schneider Product code: White -IN8431RJ6 / Dark Grey: IN8431RJ6(BZ) This Zencelo 1M data module applies RJ45 Cat6 UTP connector It has shutter on the connector to prevent dust ingress and foreign object insertion Connector PIN designations follow TIA/EIA 568 standard.

Color:
  • Brand: SCHNEIDER
  • Category: Switch, Sockets & Plates
  • Sub Category: SCHNEIDER
  • Product Code: 523


Main
RangeZENcelo
product or component typeData socket
Device applicationCommunication
Socket additional informationShuttered
Colour tintBronze
number of modules1
Main colour tintBronze

Complementary
Rated current1.5 A
Communication network categoryData: 6
Insulation resistance>= 200 mOhm
Contact resistance1 µOhm
Minimum return loss23 dB
AWG gaugeAWG 26...AWG 22 (4 twisted pair cables)
Contacts materialHousing: PC
Contact: phosphor bronze with gold plating
IDC contact: phosphor bronze with nickel plating
MaterialPA6: base
PC: cover
PC: shutter
device mountingFlush
Width23.5 mm
Height58 mm
Depth15.2 mm

Environment
Dielectric strength1000 V for 60 s at 60 Hz
Ambient air temperature for operation-5…35 °C
Relative humidity0…95 %
Environmental characteristicNo UV resistant
StandardsASTMD4566-98
TIA/EIA-568-B.2-1
TIA/EIA-568-B.2

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height5.3 cm
Package 1 Width3.5 cm
Package 1 Length2.4 cm
Package 1 Weight20 g

Contractual warranty
Warranty18 months
