In Stock

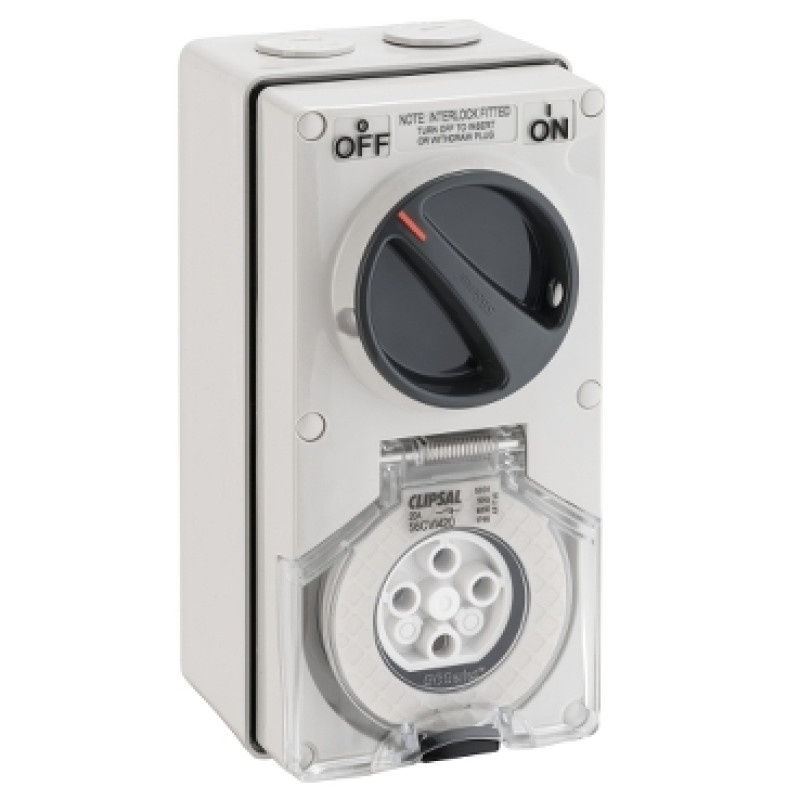

Schneider 56 Series IP66 - 500V 20A - 5 Round Pin Socket Switched Interlocked - (56CVI520-GY)

13090 - 50% Off ₹ 26179

Inclusive of all taxes

Product will be deliver within 3-4 days.

Main Range of product Series 56 Range Clipsal - 56 Series Product brand Clipsal product or component type Socket-outlet Device application Power supply Colour Grey (RAL 7035)

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 526

Main
Range of productSeries 56
RangeClipsal - 56 Series
Product brandClipsal
product or component typeSocket-outlet
Device applicationPower supply
ColourGrey (RAL 7035)

Complementary
Number of poles4
Plug, socket categoryLow voltage
outlet standardAustralian/New Zealand
Plug, socket, control station shapeStraight
Number of power socket outlets1 protective cover
[In] rated current20 A
[Ue] rated operational voltage500 V AC 50 Hz
poles description3P + E
Protection typeWithout protection
device mountingSurface
MaterialPolycarbonate: cover
Contacts materialPins: phosphor bronze
Connections - terminalsScrew terminals cable(s) 2.5…16 mm²
Electrical connectionIndustrial connector
Depth108 mm
Width101 mm
Height204 mm
targeted countryAustralia

Environment
StandardsAS/NZS 3123
AS/NZS 3133
Ambient air temperature for operation-25…75 °C
IP degree of protectionIP66 conforming to AS 60529
