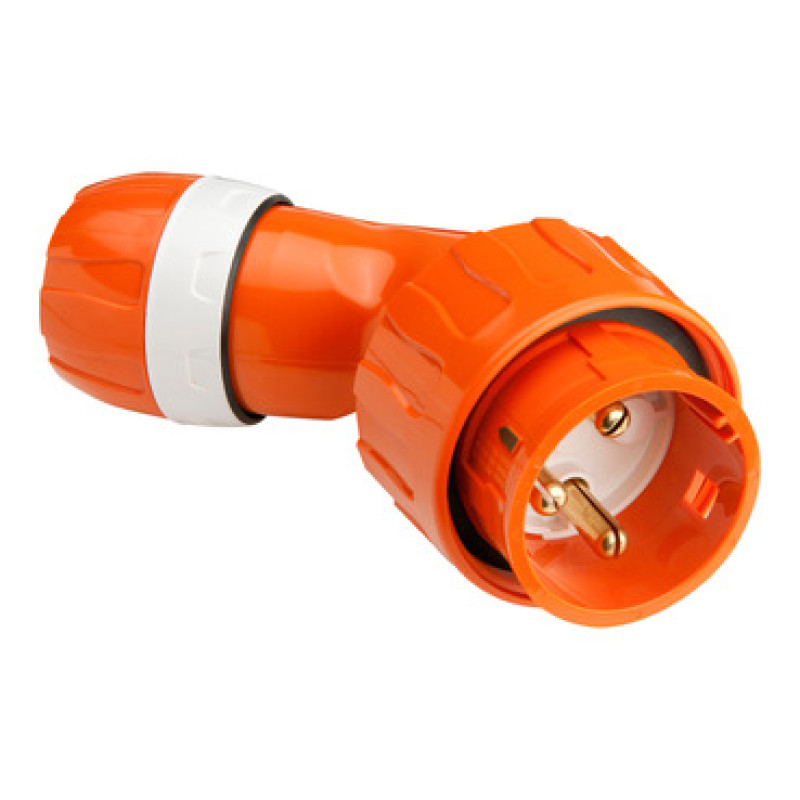

Schneider 56 Series IP66 - 250V 32A - 3 Round Pins Plugs and Extension Sockets Angle Plugs - (56PA332-EO)

3162 - 50% Off ₹ 6324

Inclusive of all taxes

Product will be deliver within 3-4 days.

Main Range Clipsal - 56 Series Range of product Series 56 Product brand Clipsal product or component type Plug Device application Power supply

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 516

Main
RangeClipsal - 56 Series
Range of productSeries 56
Product brandClipsal
product or component typePlug
Device applicationPower supply

Complementary
[In] rated current32 A
poles description1P + N + E
[Ue] rated operational voltage250 V AC 50 Hz conforming to EN 60309-2
ColourOrange (RAL 2004)
MaterialPlastic
Plug, socket categoryLow voltage
MaterialPolycarbonate: housing
Outlet standardIndustrial
Connections - terminalsScrew terminal 2.5…25 mm²
Wire stripping length20 mm
50 mm
Contacts materialPins: brass
Cable entryCable gland
Thread typeM40
Plug, socket, control station shapeAngled
Pin arrangementB
Duration6 h
net weight0.38 kg
Height78 mm
Width130 mm
Depth168 mm
targeted countryAustralia

Environment
StandardsAS/NZS 3123
IP degree of protectionIP66 conforming to AS 60529
Ambient air temperature for operation-25…75 °C
