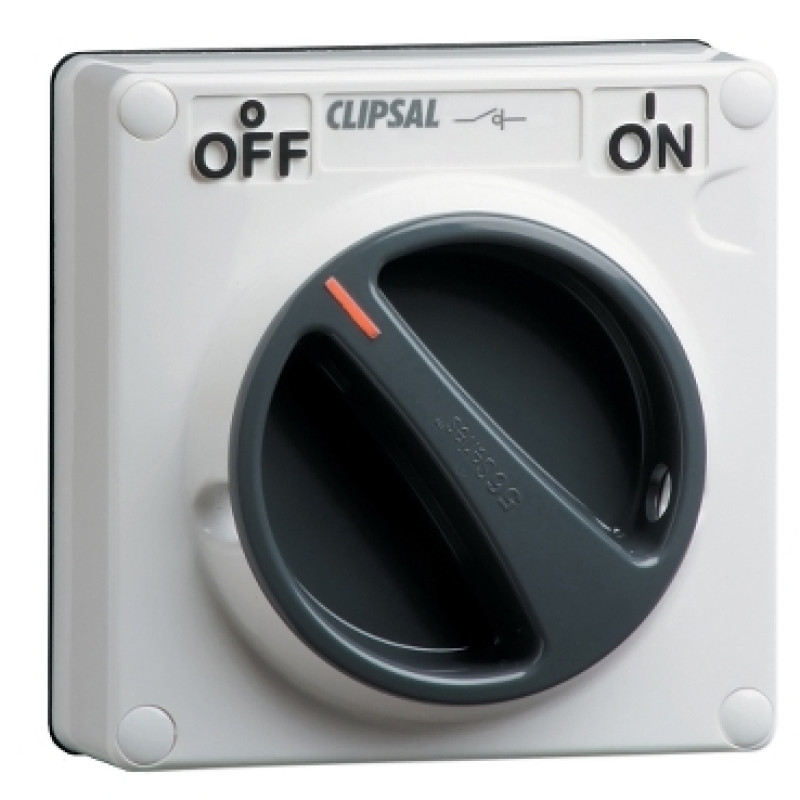

Range of product | Series 56 |
---|---|
Range | Clipsal - 56 Series |
Product brand | Clipsal |
product or component type | Switch |
Assembly Type | Basic element with full cover plate |
Device application | Control |
handle colour | Grey |
Suitability for isolation | Yes |
Colour | Cover: grey |
poles description | 3P |
---|---|
[Icm] rated short-circuit making capacity | 1 kA |
Control type | Rotary knob |
Number of poles | 3 |
Installation Type | Surface |
Material | PC (polycarbonate) |
Tightening torque | 0.8 N.m |
Local signalling | Without |
[Ue] rated operational voltage | 500 V AC 50 Hz |
Rated current | 32 A |
marking | ON-OFF |
marking location | Marking on surface |
Breaking capacity | 32 kA |
targeted country | Australia |
Height | 107 mm |
Width | 101 mm |
Depth | 72 mm |
net weight | 0.28 kg |
Motor M-rating AS3133 | M180 at 500 V |
[Uimp] rated impulse withstand voltage | 4 kV |
[Icw] rated short-time withstand current | 1.2 kA for 1 s |
Switch function | 3-pole |
Rotary handle padlocking | 2 padlocks 8 mm |
Ambient air temperature for operation | -25…75 °C |
---|---|
IP degree of protection | IP66 conforming to AS 60529 |
Standards | AS/NZS 3133 |
