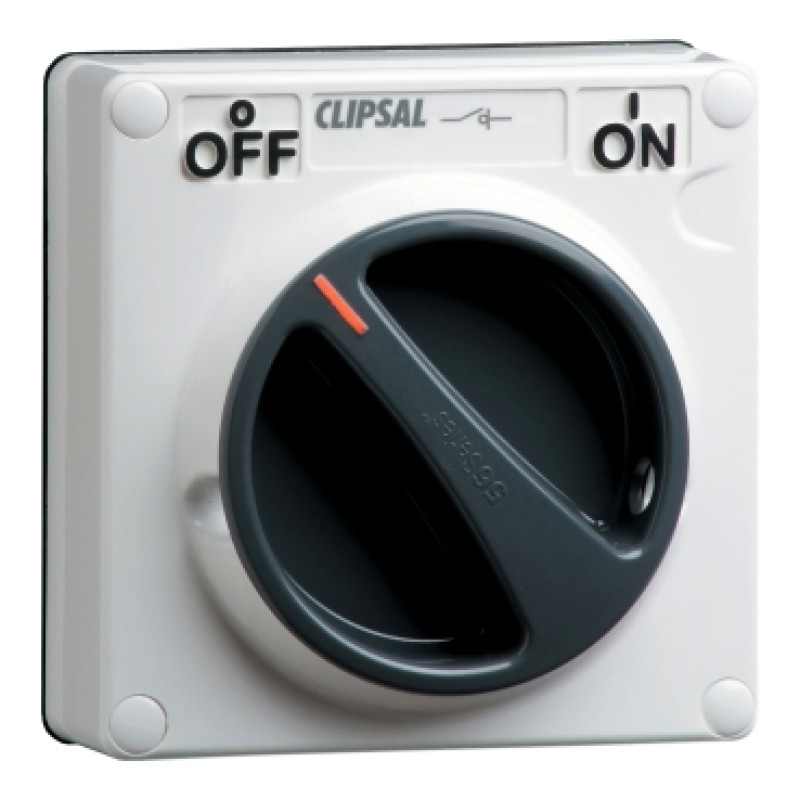

Schneider 56 Series PVC IP66 - 20A 1 Gang 3Pole Less Surface Switch - Enclosure (56SW320LE-GY)

3203 - 50% Off ₹ 6406

Inclusive of all taxes

Product Will be deliver within 3 - 4 Days

Range of product: Series 56 Range: Clipsal - 56 Series Product brand: Clipsal product or component type: Switch Assembly Type: Basic element with full cover plate Device application: Control handle color: Grey Suitability for isolation: Yes Color: Cover: grey

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER

About this item

    • Range of product Series: 56
    • Range: Clipsal - 56 Series
    • Product brand: Clipsal
    • product or component type:  Switch
    • Assembly Type:  Basic element with full cover plate
    • Device application:  Control
    • handle color:  Grey
    • Suitability for isolation:  Yes
    • Color:  Cover: grey
    • poles description:  3P
    • [Icm] rated short-circuit making capacity:   1 kA
    • Control type:  Rotary knob
    • Number of poles:   3
    • Installation Type:  Surface
    • PC (polycarbonate)Tightening torque: 0.8 N.m
    • Local signalling:  Without
    • [Ue] rated operational voltage:  500 V AC 50 Hz
    • Rated current:  20 A
    • marking:  ON-OFF
    • marking location:   Marking on surface
    • Breaking capacity:  20 kA
    • targeted country:  Australia
    • Height:  107 mm
    • Width:  101 mm
    • Depth:  72 mm
    • net weight:  0.3 kg
    • Motor M-rating:   AS3133M150 at 500 V
    • [Uimp] rated impulse:   withstand voltage4 kV
    • [Icw] rated short-time withstand current:    1.2 kA for 1 s
    • Switch function:   3-pole
    • Rotary handle padlocking:  2 padlocks:  8 mm
    • Ambient air temperature for operation:  -25…75 °C
    • IP degree of protectionIP66 conforming to AS 60529
    • Standards:   AS/NZS 3133
