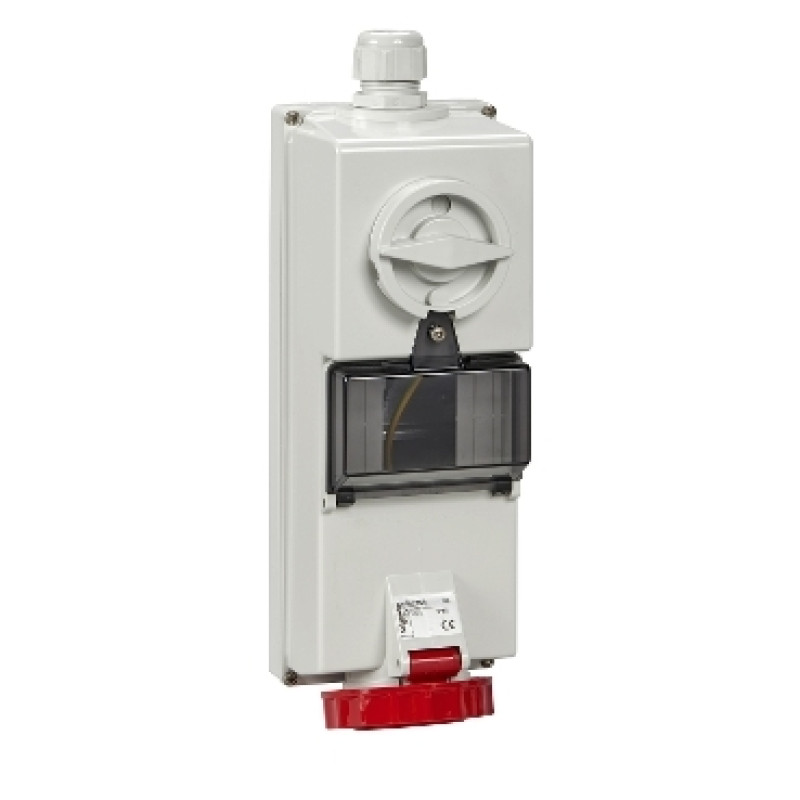

Schneider 16A - 3P + N + E Isoblock interlocked socket IP65- 380...415 V AC - wall (82759)

8376 - 50% Off ₹ 16752

Inclusive of all taxes

Product will be deliver within 3-4 days.

Main Range Mureva product or component type Interlocked socket Device short name Isoblock socket Plug, socket category Low voltage industrial socket type B16 poles description 3P + N + E Network type AC Outlet standard Industrial

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 501

Main
RangeMureva
product or component typeInterlocked socket
Device short nameIsoblock socket
Plug, socket categoryLow voltage
industrial socket typeB16
poles description3P + N + E
Network typeAC
Outlet standardIndustrial

Complementary
mounting modeWall-mounted
[In] rated current16 A
[Ue] rated operational voltage380...415 V
Network frequency50/60 Hz
ground lug clockwise position6 h
Protection typeWithout protection
Product compatibilityModular device
Total number of 18 mm modules4.5
Plug, socket materialHousing: self-extinguishing engineering polymer
Contacts materialSleeves: nickel plated brass
Connections - terminalsCaptive screws
Maximum cable cross section10 mm²
Maximum cable outer diameter25 mm
Cable entryCable gland
Thread typePg 21
net weight1.017 kg
Base dimension144 x 318 mm
Height318 mm
Width144 mm
Depth147 mm
ColourGrey (RAL 7035)
Voltage colourRed

Environment
StandardsIEC 60309-2
IEC 60309-1
IP degree of protectionIP65 conforming to IEC 60529
IK degree of protectionIK10 conforming to EN 62262
Fire resistance850 °C conforming to IEC 60695-2-11
Relative humidity50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
Ambient air temperature for operation35 °C ( 86400 s )
-25…40 °C
