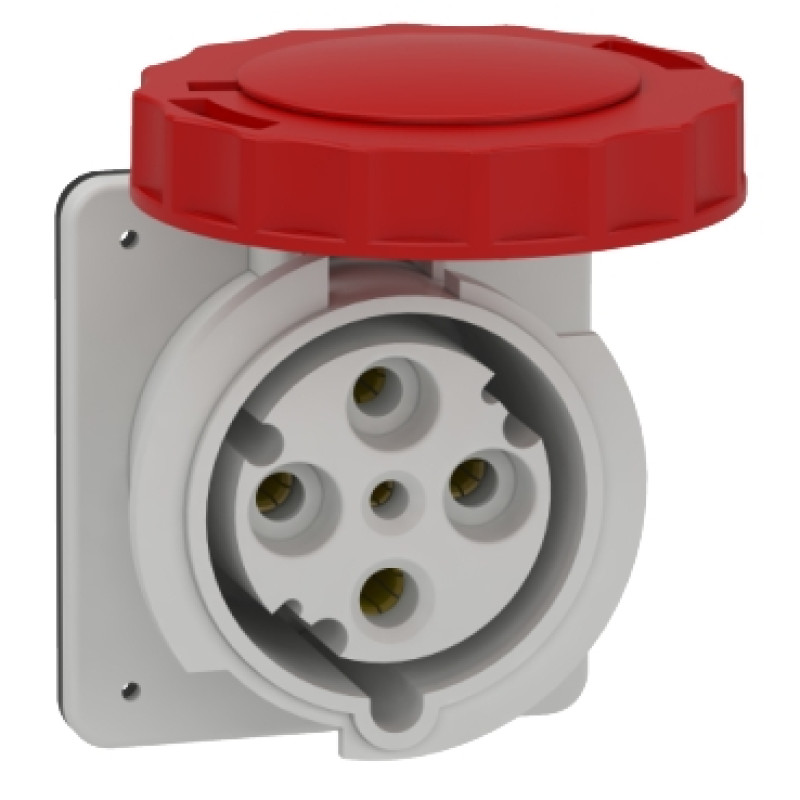

Schneider 63A - 3P + E socket screw straight - IP67 380...415 V AC Panel (81682)

2644 - 50% Off ₹ 5288

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 3P+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 108mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 487

Main
RangeMureva
product or component typeSocket
Device short nameMureva socket
Plug, socket categoryLow voltage
poles description3P + E
Network typeAC
Outlet standardIndustrial

Complementary
mounting modePanel-mounted
Plug, socket, control station shapeStraight
[In] rated current63 A
[Ue] rated operational voltage380...415 V
Network frequency50/60 Hz
ground lug clockwise position6 h
Plug, socket materialHousing: self-extinguishing engineering polymer
Contacts materialPins: stainless steel
Sleeves: nickel plated brass
Springs: stainless steel
Connections - terminalsCaptive screws, completely loosened
cable cross section6…25 mm²
net weight0.474 kg
Base dimension100 x 107 mm
Height107 mm
Width108 mm
Depth113 mm
ColourGrey (RAL 7035)
Voltage colourRed

Environment
StandardsEN 60309-2
EN 60309-1
IP degree of protectionIP67 conforming to IEC 60529
IK degree of protectionIK08 conforming to EN 62262
Fire resistance850 °C conforming to IEC 60695-2-11
Relative humidity50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
Ambient air temperature for operation35 °C ( 86400 s )
