Range | Mureva |
---|---|

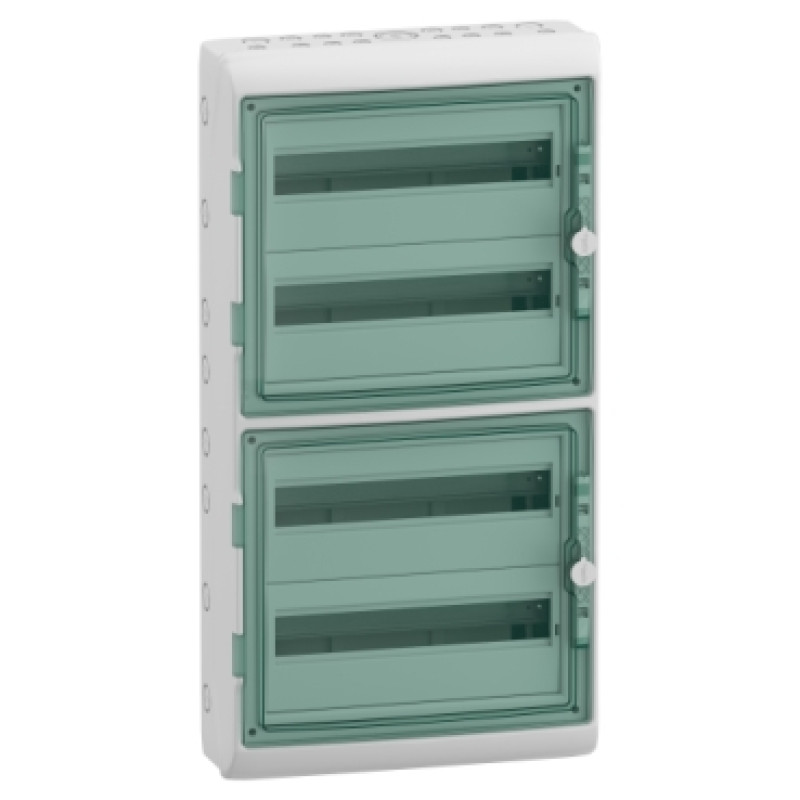

Product name | Mureva Enclosure |
product or component type | Weatherproof enclosure |
Enclosure type | Enclosure for modular device |
Mounting plate description | Without mounting plate |
enclosure mounting | Surface |
---|---|
9 mm pitches | 36 |
Number of 18 mm modules per row | 18 |
Total number of 18 mm modules | 72 |
Number of horizontal rows | 4 |
Electrical insulation class | Class II Double insulation |
Provided equipment | 4 marking kit 4 wiring strap 2 terminal block support 4 terminal block 32 holes |
type of front cover | Reversible Transparent |
Power dissipation in W | 89 W |
[In] rated current | 160 A |
Type of rail | DIN |
Number of pre-cutouts PG ISO | 17 |
Number of terminal blocks | 4 earth / neutral (screw connection) with 32 outgoers |
Distribution block outgoers | 64 x 10 mm² 64 x 16 mm² |
Locking options description | Optional keylock |
Enclosure material | Self-extinguishing polymer |
Width | 448 mm |
Height | 842 mm |
Depth | 160 mm |
Internal depth | 88 mm |
Colour | Door: transparent green Enclosure: light grey (RAL 7035) |
Standards | EN 50262 IEC 61439-3 IEC 60670 IEC 60695-2-1 |
---|---|
Fire resistance | 650 °C conforming to IEC 60695-2-1 |
IP degree of protection | IP65 conforming to IEC 60529 |
IK degree of protection | IK09 conforming to EN 50102 |
Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013 |
Overvoltage category | II |
Ambient air temperature for operation | -25…60 °C |
