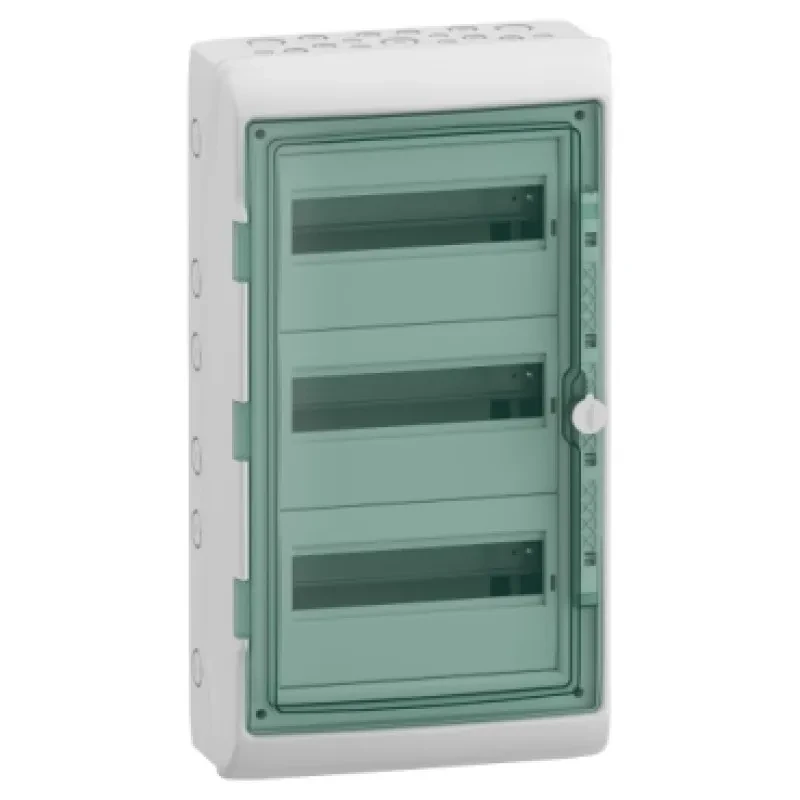

Schneider WeatherProof Mini Enclosures for modular devices (with terminal blocks) - IP65 - 3 row 36 module - (13435)

9965 - 50% Off ₹ 19930

Inclusive of all taxes

Product will be deliver within 3-4 days.

Range: Mureva Product name: Mureva Enclosure product or component type: Weatherproof enclosure Enclosure type: Enclosure for modular device Mounting plate description: Without mounting plate Surface: 9 mm pitches: 24 Number of: 18 mm modules per row12 Total number of: 18 mm modules: 36 Number of horizontal rows: 3 Provided equipment: 3 marking kit type of front cover: Transparent Reversible[In] rated current: 125 A Type of: rail DIN Number of pre-cutouts: PG ISO17 Number of terminal blocks: 2 earth / neutral (screw connection) with 32 outgoers Distribution block outgoers: 32 x 10 mm² ,32 x 16 mm² Width: 340 mm Height: 610 mm Depth: 160 mm Internal depth: 88 mm Color: Door transparent green Enclosure: light grey (RAL 7035) Environment: Standards

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER

About this item

  • This Kaedra weatherproof versatile enclosure up to 12 modules in 3 rows comes with reversible transparent cover. The total number of modules is 36. The dimensions of the box are (W) 340mm x (H) 610mm x (D) 160mm. The rated current is 125A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation.
