In Stock

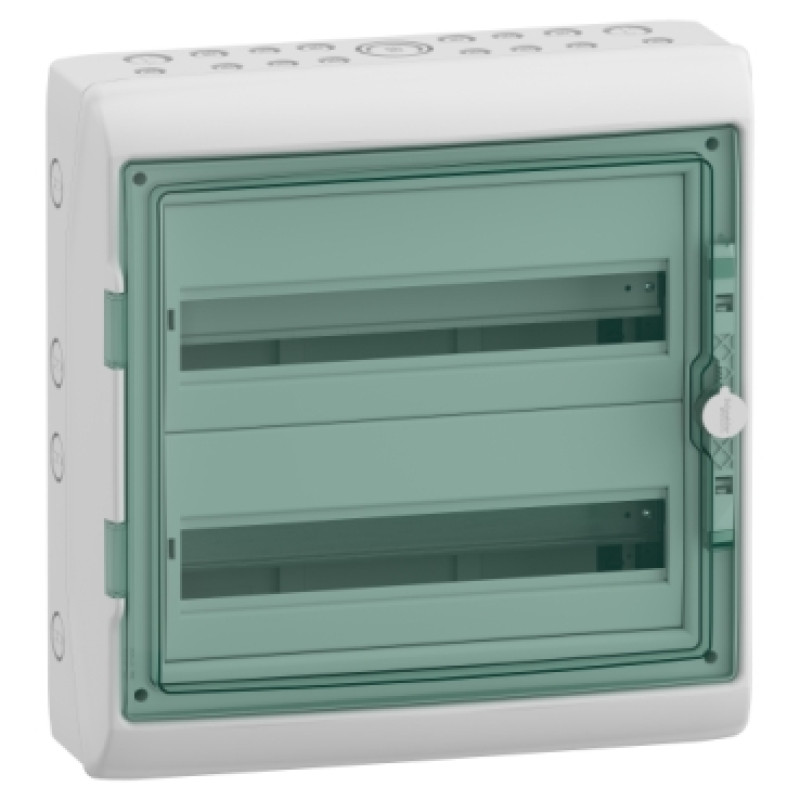

Schneider WeatherProof Mini Enclosures for modular devices (with terminal blocks) - IP65 - 2 row 36 module - (13434)

9557 - 50% Off ₹ 19114

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Kaedra weatherproof versatile enclosure up to 18 modules in 2 rows comes with reversible transparent cover. The total number of modules is 36. The dimensions of the box are (W) 448mm x (H) 460mm x (D) 160mm. The rated current is 90A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 381

Main
RangeMureva
Product nameMureva Enclosure
product or component typeWeatherproof enclosure
Enclosure typeEnclosure for modular device
Mounting plate descriptionWithout mounting plate

Complementary
enclosure mountingSurface
9 mm pitches36
Number of 18 mm modules per row18
Total number of 18 mm modules36
Number of horizontal rows2
Electrical insulation classDouble insulation
Class II
Provided equipment2 marking kit
2 wiring strap
1 terminal block support
2 terminal block 32 holes
type of front coverReversible
Transparent
[In] rated current90 A
Type of railDIN
Number of pre-cutouts PG ISO17
Number of terminal blocks2 earth / neutral (screw connection) with 32 outgoers
Distribution block outgoers32 x 10 mm²
32 x 16 mm²
Locking options descriptionOptional keylock
Enclosure materialSelf-extinguishing polymer
Width448 mm
Height460 mm
Depth160 mm
Internal depth88 mm
ColourDoor: transparent green
Enclosure: light grey (RAL 7035)

Environment
StandardsIEC 61439-3
EN 50262
IEC 60670
IEC 60695-2-1
Fire resistance650 °C conforming to IEC 60695-2-1
IP degree of protectionIP65 conforming to IEC 60529
IK degree of protectionIK09 conforming to EN 50102
Environmental characteristics (UV)UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage categoryII
Ambient air temperature for operation-25…60 °C
