Schneider WeatherProof Mini Enclosures for modular devices (IP65) - 4 module - 1 openings - (13441)

2123 - 50% Off ₹ 4245

Inclusive of all taxes

Product will be deliver within 3-4 days.

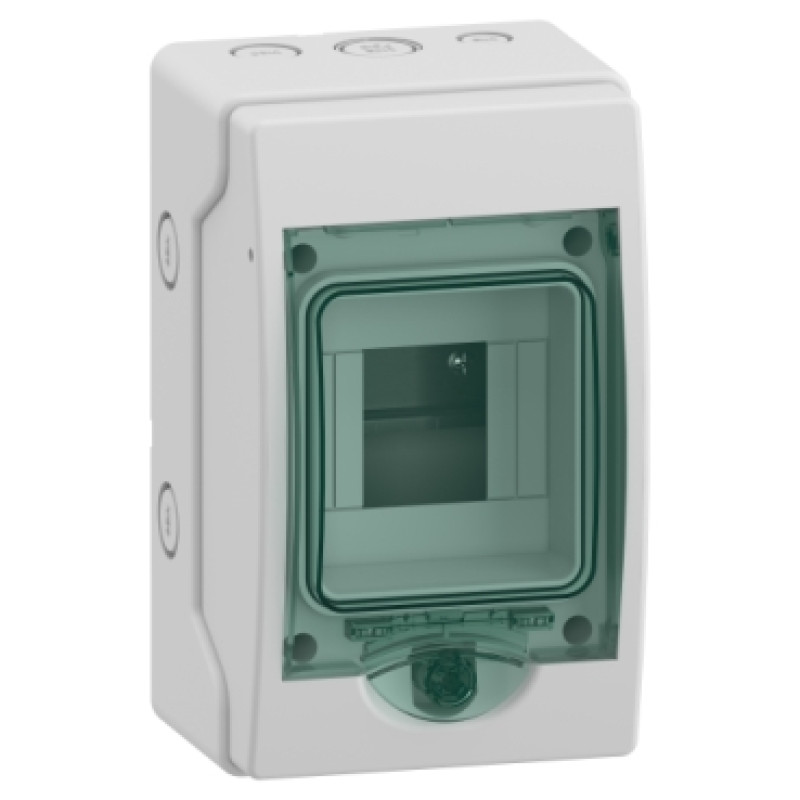

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. 2 terminal blocks can be installed on the back of the enclosure. Each one has 4 outgoers (2x10mm² + 2x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 10W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 123mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 374

Main
RangeMureva
Product nameMureva Enclosure
product or component typeWeatherproof enclosure
Enclosure typeMini enclosure for modular device
Mounting plate descriptionWithout mounting plate

Complementary
enclosure mountingSurface
9 mm pitches8
Number of 18 mm modules per row4
Total number of 18 mm modules4
Number of horizontal rows1
Electrical insulation classDouble insulation
Class II
Provided equipment1 marking kit
2 terminal block 4 holes
type of front coverTransparent
Power dissipation in W10 W
[In] rated current63 A
Type of railDIN
Number of pre-cutouts PG ISO3
Number of terminal blocks2 earth / neutral (screw connection) with 4 outgoers
Distribution block outgoers4 x 10 mm²
4 x 16 mm²
Locking options descriptionOptional keylock
Enclosure materialSelf-extinguishing polymer
Width123 mm
Height200 mm
Depth112 mm
Internal depth56 mm
ColourDoor: transparent green
Enclosure: light grey (RAL 7035)

Environment
StandardsEN 50262
IEC 60695-2-1
IEC 60670
IEC 61439-3
Fire resistance650 °C conforming to IEC 60695-2-1
IP degree of protectionIP65 conforming to IEC 60529
IK degree of protectionIK09 conforming to EN 50102
Environmental characteristics (UV)UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage categoryII
Ambient air temperature for operation-25…60 °C
