In Stock

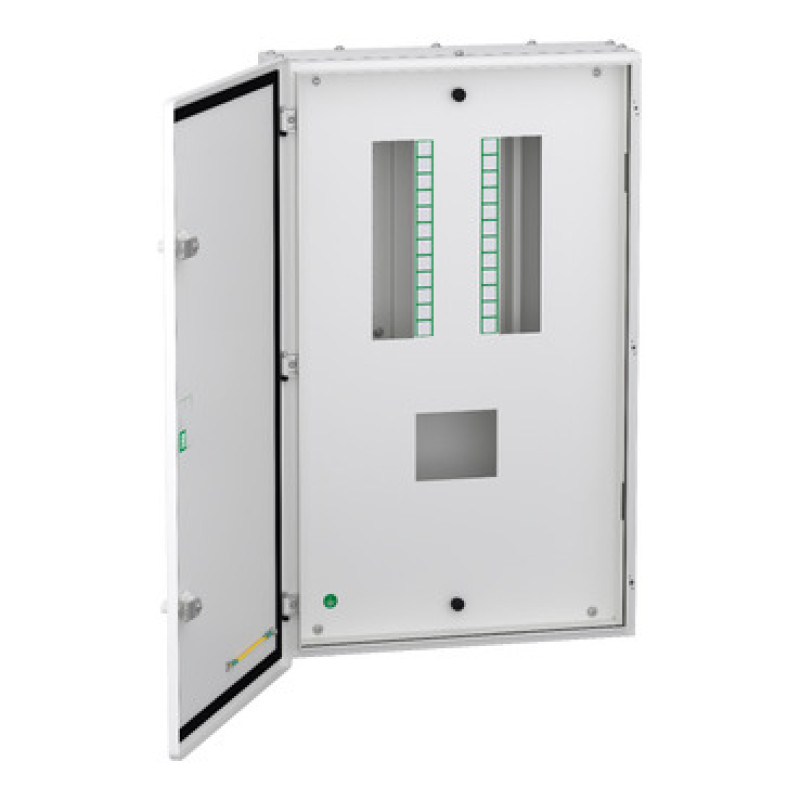

Schneider Acti9 VTPN DBs for MCCB Incomer (IP43) - VTPN DB 8 Ways MCCB I-c 100A - 100A MCCB + 24 - Double Door - 8 way - (A9HVN08L)

10382 - 50% Off ₹ 20763

Inclusive of all taxes

Product will be deliver within 3-4 days.

VTPN Distribution board from Schneider Electric, which is an Acti9, 8 ways, 100A MCCB, with a double door metal enclosure and an IP43 rating sDBs for higher incoming current distribution up to 250A sIncomer - TP/FP Compact NSX or EasyPact CVS MCCB up to 250A sOutgoing - SP MCBs / TP MCBs s65% more Incomer Wiring Space. sNew Compact Fishbone with better Thermal Performance sShort Circuit Withstand – 17 kA for 250mS (100 A)/ 25 kA (250 A) for 500mS sSecure Connections with Fixed Spreader links sIP 2X protection at Incomer with new shrouds sType tested as per IEC 61439 – 3 in NABL accredited Lab sKN OU T E R¬) NCO M ER ¬INC R E A SE D¬ TE¬ IN I U L

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 360

Main
RangeActi9
Product nameVTPN
product or component typeConsumer unit
Device applicationDistribution
ColourWhite (RAL 9003)
Provided equipmentRemovable gland plates
Removable centre plates
Earthing bar
Neutral bar
Fishbone busbar
Busbar link
Cable shroud
Neutral terminal block
Door typePlain

Complementary
enclosure mountingSurface
Flush
Protection device typeMain incomer: molded case circuit breaker (MCCB) - 3P or 4P - 100 A
Outgoer: miniature circuit breaker (MCB) - 1P or 3P - 63 A
[Icw] rated short-time withstand current17 kA for 0.25 s
[In] rated current100 A
[Ui] rated insulation voltage500 V
[Uimp] rated impulse withstand voltage4 kV
Total number of 18 mm modules24
Number of ways8 ways
Enclosure/cubicle descriptionDouble door enclosure
Enclosure materialGalvanized steel box
Galvanized steel cable gland plate
Galvanized steel mounting plate
CRCA door
CRCA central plate
Door opening sideReversible
Height667 mm external:
Width416 mm external:
Depth139 mm external:
net weight17 kg

Environment
IP degree of protectionIP43
IK degree of protectionIK09
StandardsIS 8623-1
IS 8623-3
IEC 61439-3
Product certificationsCPRI
NABL
