In Stock

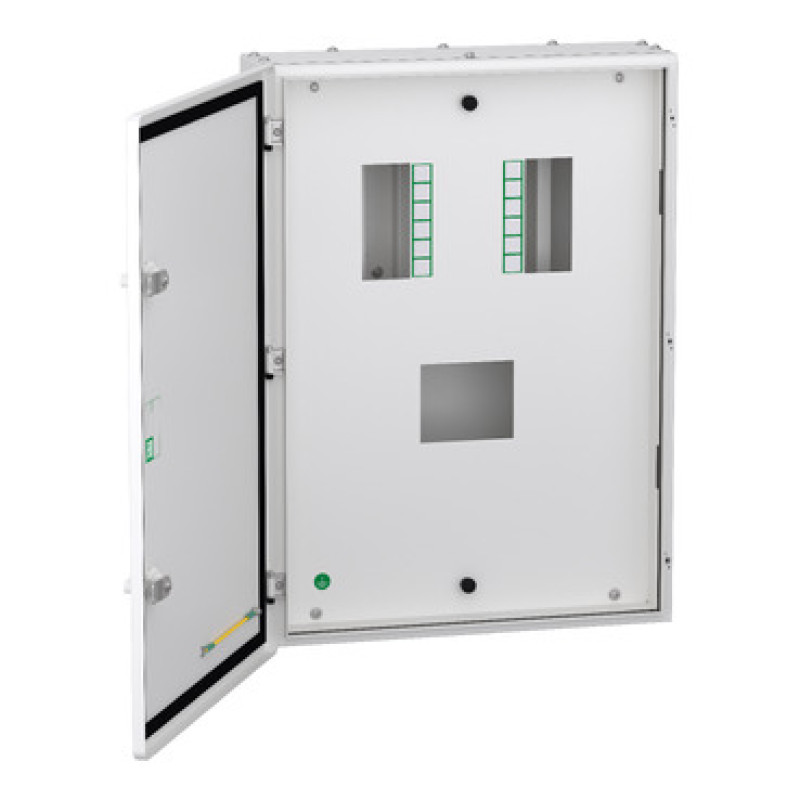

Schneider Acti9 VTPN DBs for MCCB Incomer (IP43) - VTPN DB 4 Ways MCCB I-c 160A - 160 A MCCB + 12 - Double Door - 4 way - (A9HVN04M)

9018 - 50% Off ₹ 18035

Inclusive of all taxes

Product will be deliver within 3-4 days.

The Schneider Electric Acti9 A9HVN04M VTPN 4 Way 12 Module Distribution Board is a reliable and efficient solution for managing electrical distribution. As part of the Distribution Boards category, this product offers exceptional performance and functionality. With the trusted Schneider Electric brand name, customers can be confident in the quality and reliability of this product.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 359

Main
RangeActi9
Product nameVTPN
product or component typeConsumer unit
Device applicationDistribution
ColourWhite (RAL 9003)
Provided equipmentRemovable gland plates
Removable centre plates
Earthing bar
Neutral bar
Fishbone busbar
Busbar link
Cable shroud
Neutral terminal block
Door typePlain

Complementary
enclosure mountingFlush
Surface
Protection device typeMain incomer: molded case circuit breaker (MCCB) - 3P or 4P - 160 A
Outgoer: miniature circuit breaker (MCB) - 1P or 3P - 63 A
[Icw] rated short-time withstand current25 kA for 0.5 s
[In] rated current160 A
[Ui] rated insulation voltage500 V
[Uimp] rated impulse withstand voltage4 kV
Total number of 18 mm modules12
Number of ways4 ways
Enclosure/cubicle descriptionDouble door enclosure
Enclosure materialGalvanized steel box
Galvanized steel cable gland plate
Galvanized steel mounting plate
CRCA door
CRCA central plate
Door opening sideReversible
HeightExternal: 558 mm
WidthExternal: 416 mm
DepthExternal : 139 mm
net weight14.6 kg

Environment
IP degree of protectionIP43
IK degree of protectionIK09
StandardsIS 8623-1
IS 8623-3
IEC 61439-3
Product certificationsNABL
