Schneider Auxiliary for Impulse relays - iACTL24 - (A9C15424)

9394 - 50% Off ₹ 18787

Inclusive of all taxes

Product will be deliver within 3-4 days.

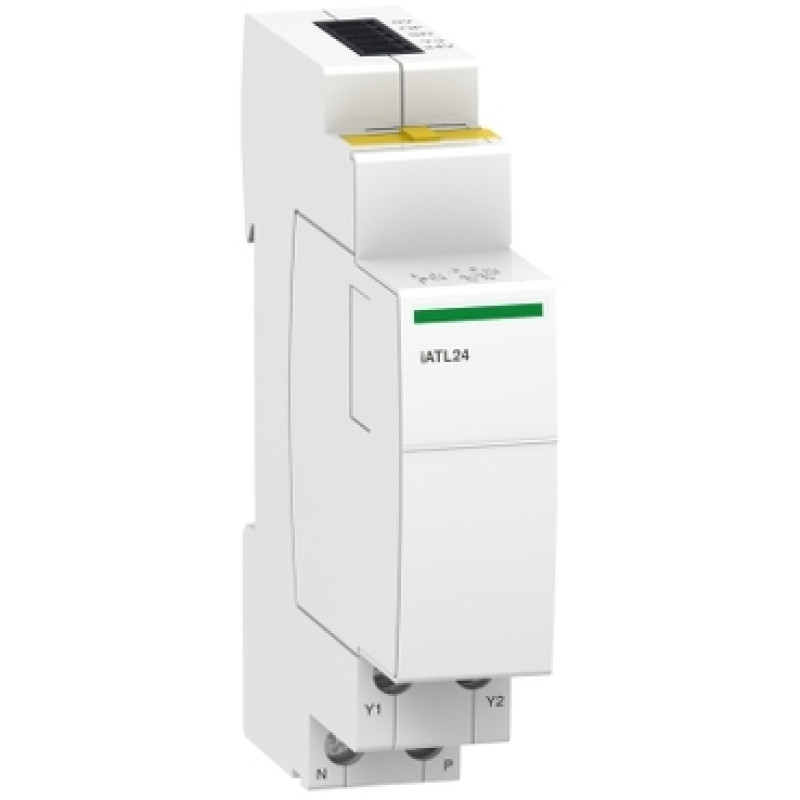

This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER


Main
range of productActi9
Device short nameiATL24
product or component typeControl and indication auxiliary
Signal contacts composition1 NO
Signalling circuit voltage24 V DC: +/- 20 % 0.002...0.1 A
[Uc] control circuit voltage230 V AC 50/60 Hz impulse >= 200 ms
24 V DC falling edge
24 V DC rising edge
[Us] rated supply voltage230 V AC at 50/60 Hz

Complementary
Control typeRemote control
[Ui] rated insulation voltage250 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV
maximum power consumption in W1 W
mounting modeFixed, on the left of CT
mounting supportDIN rail
Comb busbar and distribution block compatibilityBottom: YES
Top: NO
Electrical durability250000 cycles conforming to IEC 60947-5-1
Immunity to microbreaks10 ms
Undervoltage behaviourNo opening if loss of 24 V DC
9 mm pitches2
Height81 mm
Width18 mm
Depth68 mm
ColourWhite
Connections - terminalsPower supply: tunnel type terminals 1 cable(s) 0.5…10 mm² - rigid
Power supply: tunnel type terminals 1 cable(s) 0.5…6 mm² - flexible
Power supply: tunnel type terminals 1 cable(s) 0.5…4 mm² - flexible with ferrule
Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - rigid
Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible
Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible with ferrule
Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5…1.5 mm² - rigid
Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² - flexible
Wire stripping lengthPower supply: 9 mm for bottom connection
Input: 9 mm for bottom connection
Ti24 interface: 10 mm for top connection
Tightening torquePower supply: 1 N.m bottom
Input: 1 N.m bottom
Range compatibilityActi 9 Acti9 iTL iTL
Acti 9 Acti9 iTL iTLi
Acti 9 Acti9 iTL iTLs
Acti 9 Acti9 iTL iTLc
Product compatibilityActi 9 Smartlink
ITL (32 A) - 230/240 V 50 Hz
ITL (16 A) - 230/240 V 50 Hz

Environment
Overvoltage categoryIV
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3 conforming to IEC 60439-1
Tropicalisation2 conforming to IEC 60947-5-1
Relative humidity93 % at 40 °C conforming to IEC 60068-2
Ambient air temperature for operation-25…60 °C
ambient air temperature for storage-40…80 °C
Quality labelsCE
StandardsIEC 60947-1 appendix S
