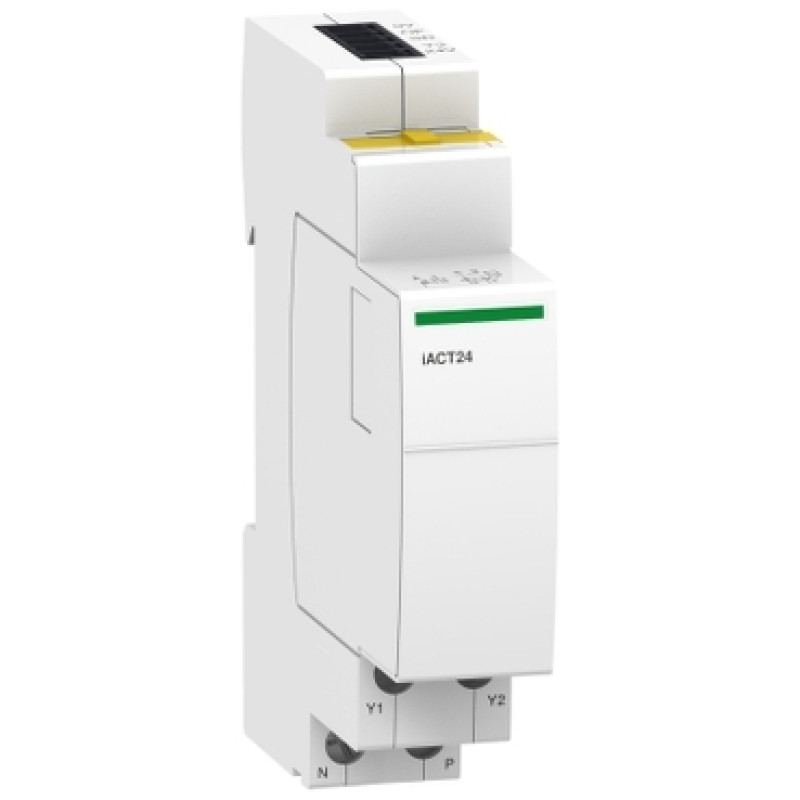

Schneider Auxiliary for contactors - iACT24 - (A9C15924)

8921 - 50% Off ₹ 17842

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti 9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Mechanical endurance goes up to 250000 cycles. This product is compliant with IEC/EN 60947-5-1.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 301

Main
RangeActi9
product or component typeControl and indication auxiliary
Device short nameiACT24
Signal contacts composition1 NO
Signalling circuit voltage24 V DC: - 20...20 % 0.002...0.1 A
[Uc] control circuit voltage230 V AC 50/60 Hz maintained >= 200 ms
24 V DC falling edge
24 V DC rising edge
Control typeRemote control
[Us] rated supply voltage230 V AC at 50/60 Hz

Complementary
mounting modeFixed, on the left of CT
mounting supportDIN rail
Comb busbar and distribution block compatibilityBottom: YES
Top: NO
9 mm pitches2
Height81 mm
Width18 mm
Depth68 mm
ColourWhite
Overvoltage categoryIII
[Uimp] rated impulse withstand voltage4 kV
[Ui] rated insulation voltage440 V
Immunity to microbreaks10 ms
Undervoltage behaviourNo opening if loss of 24 V DC
StandardsIEC 60947-1 annex S
Quality labelsCE
Electrical durability250000 cycles conforming to IEC 60947-5-1
Connections - terminalsControl circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible
Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid
Auxiliary supply: tunnel type terminals 2 cable(s) 2.5 mm² flexible
Auxiliary supply: tunnel type terminals 2 cable(s) 1.5 mm² rigid
Control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25…0.75 mm² flexible
Control circuit: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² flexible
Wire stripping lengthControl circuit: 10 mm for bottom connection
Auxiliary supply: 10 mm for bottom connection
Control circuit: 10 mm for top connection
Tightening torqueControl circuit: 1 N.m bottom
Auxiliary supply: 1 N.m bottom
Product compatibilityICT 230/240 V 50 Hz
With PLC
ICT 220 V 50 Hz
Acti 9 Smartlink
ICT 220/240 V 50 Hz
Market segmentResidential
Small commercial
Compatibility codeIACT24

Environment
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3 conforming to IEC 60439-1
Tropicalisation2 conforming to IEC 60947-5-1
Relative humidity93 % at 40 °C conforming to IEC 60068-2
Ambient air temperature for operation-25…60 °C
ambient air temperature for storage-40…80 °C
