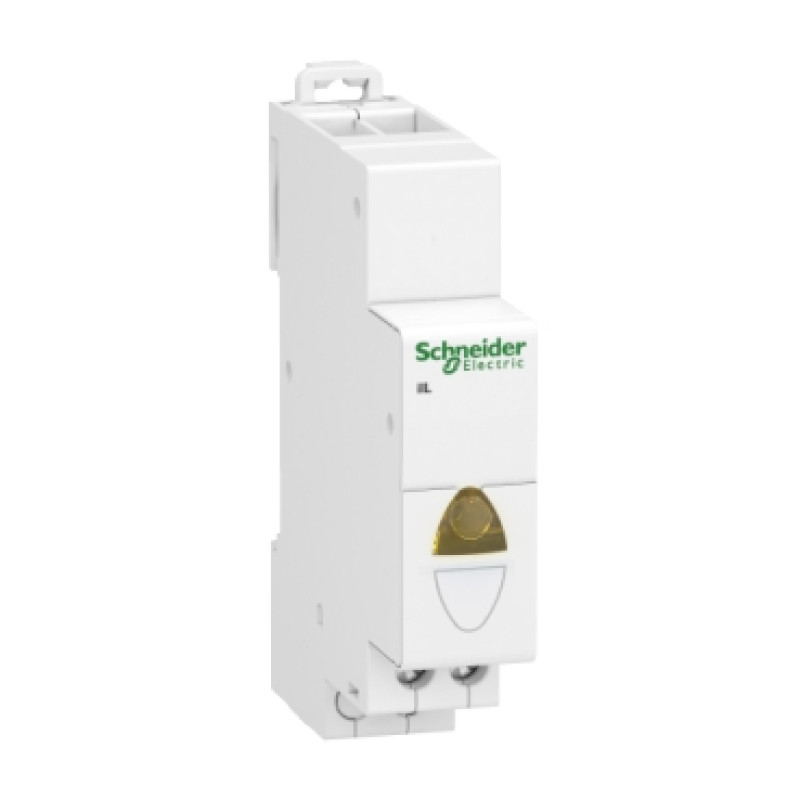

Schneider Acti9 iIL single indicator light - yellow - 110-230 Vac -( A9E18324)

958 - 50% Off ₹ 1915

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti9 iIL accessory is a single modular pilot light fixed on DIN rail. It has at front face a yelllow LED of 0.3W with a service life of 100000 hours. The Us rated supply voltage is 100VAC to 230VAC at a 50/60Hz frequency, or is 110VDC to 130VDC.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 297

Main
range of productActi9
Product nameActi9 iIL
product or component typeModular pilot ligth
Device short nameiIL
[Us] rated supply voltage110...230 V AC at 50/60 Hz
110...130 V DC

Complementary
indicator light1 LED yellow, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
mounting modeFixed
mounting supportSymmetrical DIN rail
Comb busbar and distribution block compatibilityUpside: ProDis
9 mm pitches2
Height82 mm
Width18 mm
Depth69.5 mm
ColourWhite (RAL 9003)
Auxiliary connection terminalTunnel type terminal 1 cable(s) rigid 0.5 mm²
Tunnel type terminal 2 cable(s) rigid 2.5 mm²
Tunnel type terminal 1 cable(s) flexible 0.5 mm²
Tunnel type terminal 2 cable(s) flexible 2.5 mm²
Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
Wire stripping length9 mm
Tightening torque1 N.m

Environment
StandardsIEC 60947-5-1
IP degree of protectionIP2
IPxx B
Pollution degree3
Tropicalisation2
Relative humidity95 % at 55 °C
Ambient air temperature for operation-35…70 °C
ambient air temperature for storage-40…80 °C
