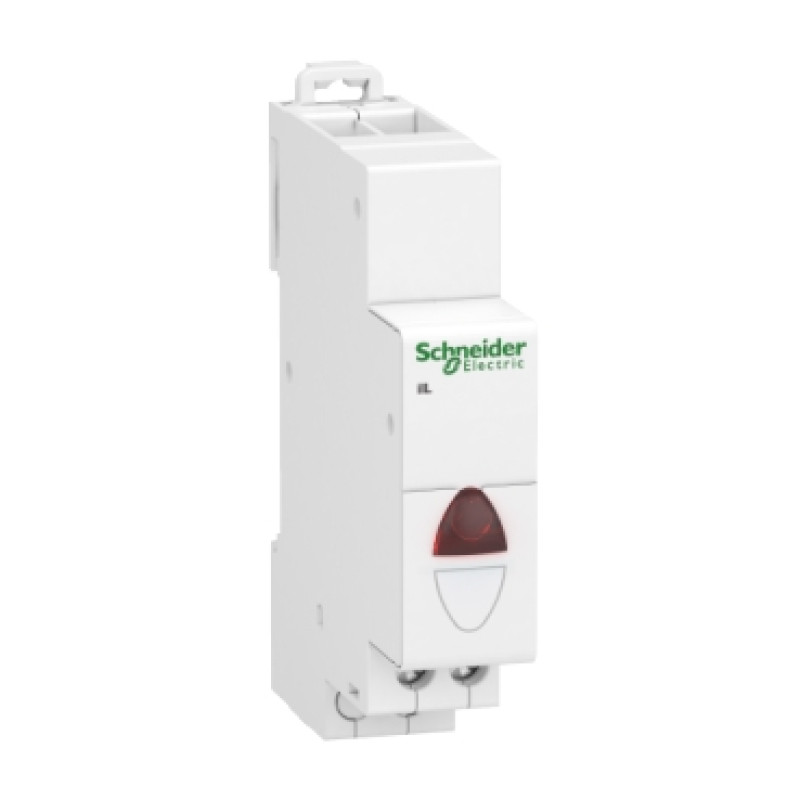

Schneider Acti9 iIL single indicator light - Red - 110-230 Vac -( A9E18320)

958 - 50% Off ₹ 1915

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti 9 iIL is a single-phase voltage presence indicator light. The voltage is 110VAC to 230VAC or 110VDC to 130VDC. The red light on the front face lights up to indicate that a voltage is present. The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm². The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m. The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum. It comes with staggered terminals to simplify the connection. The LED indication light maximum consumption per indicator light is 0.3W. The Operating frequency is 50Hz or 60Hz. The service life of the LED indicator light is 100000h of constant lightning efficiency. Because of the non-interchangeability of LEDs it is a maintenance-free device. The tropicalization is Treatment 2 (relative humidity 95% at 55°C). The degree of protection is IP20. The pollution degree is 3. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 68mm. The weight is 65g. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 80°C. This product complies with IEC/EN 60947-5-1 standard.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 294


Main
range of productActi9
Product nameActi9 iIL
product or component typeModular pilot ligth
Device short nameiIL
[Us] rated supply voltage110...230 V AC at 50/60 Hz
110...130 V DC

Complementary
indicator light1 LED red, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
mounting modeFixed
mounting supportSymmetrical DIN rail
Comb busbar and distribution block compatibilityUpside: ProDis
9 mm pitches2
Height82 mm
Width18 mm
Depth69.5 mm
ColourWhite (RAL 9003)
Auxiliary connection terminalTunnel type terminal 1 cable(s) rigid 0.5 mm²
Tunnel type terminal 2 cable(s) rigid 2.5 mm²
Tunnel type terminal 1 cable(s) flexible 0.5 mm²
Tunnel type terminal 2 cable(s) flexible 2.5 mm²
Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
Wire stripping length9 mm
Tightening torque1 N.m

Environment
StandardsIEC 60947-5-1
IP degree of protectionIP2
IPxx B
Pollution degree3
Tropicalisation2
Relative humidity95 % at 55 °C
Ambient air temperature for operation-35…70 °C
ambient air temperature for storage-40…80 °C
