range of product | Acti9 |
---|---|

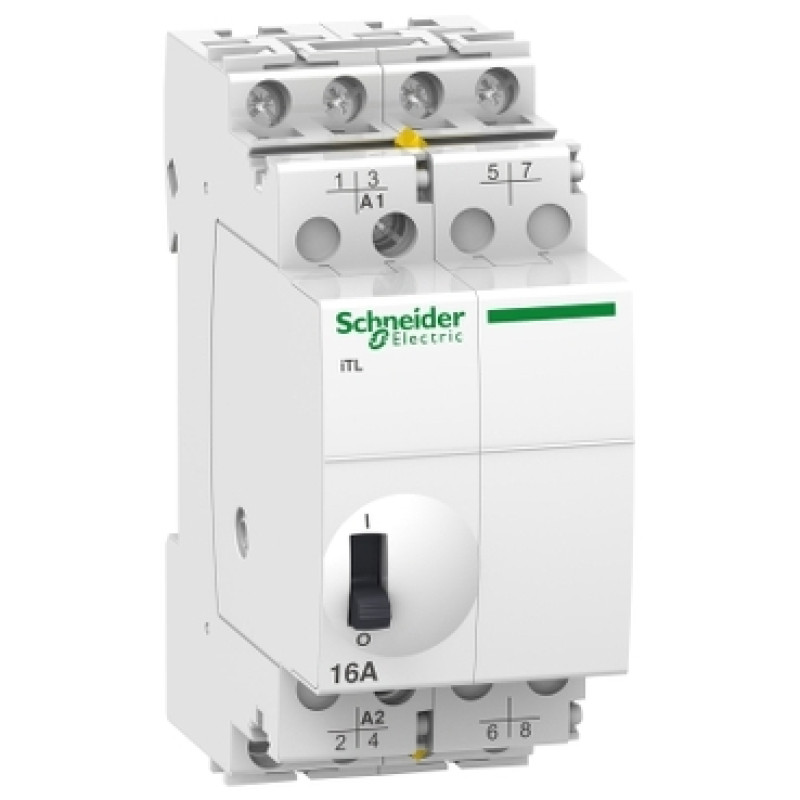

Product name | Acti9 iTL |
product or component type | Impulse relay |
Device short name | iTL |
Device application | Standard |
Poles | 4P |
Pole contact composition | 4 NO |
[In] rated current | 16 A |
Network type | AC |
[Uc] control circuit voltage | 230...240 V AC 50/60 Hz 110 V DC |
Network frequency | 50/60 Hz |
---|---|
[Ue] rated operational voltage | 415 V AC 50/60 Hz |
Control type | Remote and manual control |
control signal type | Impulse |
Switching frequency | 5 switching operations/minute 100 switching operations/day |
impulse duration | 50 ms...1 s |
Remote control type | Illuminated push-button 3 mA |
local signalling | ON/OFF indication |
mounting mode | Fixed |
mounting support | DIN rail |
9 mm pitches | 4 |
Height | 84 mm |
Width | 36 mm |
Depth | 60 mm |
Electrical durability | AC-21: 200000 cycles AC-22: 100000 cycles |
Connections - terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule |
Wire stripping length | 11 mm |
Tightening torque | 1 N.m |
Range compatibility | Acti 9 iATEt Acti 9 iATL4 Acti 9 iATLc Acti 9 iATLc+s Acti 9 iATLm Acti 9 iATLs Acti 9 iATLz Acti 9 iETL iTL 16 Acti 9 iATLc+c Acti 9 iATL24 |
Standards | EN 669-1 EN 669-2-2 |
---|---|
Product certifications | GOST CCC |
Quality labels | KEMA CEBEC NF VDE IMQ |
Noise level | 60 dB |
IP degree of protection | IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure) |
Pollution degree | 3 |
Tropicalisation | 2 |
Relative humidity | 95 % at 55 °C |
Ambient air temperature for operation | -20…50 °C |
ambient air temperature for storage | -40…70 °C |
