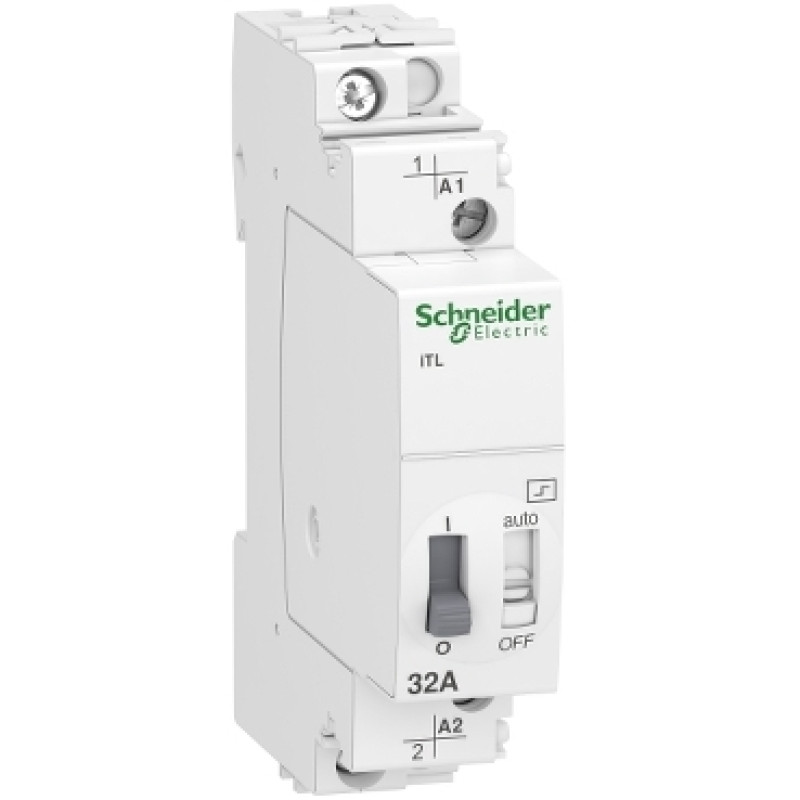

Schneider iTL Relays -1NO - single pole - 32A - 230 - 240VAC - ( A9C30831)

1166 - 50% Off ₹ 2331

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 32A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 50000 cycles for AC-21 or 20000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 291

Main
range of productActi9
Product nameActi9 iTL
product or component typeImpulse relay
Device short nameiTL
Device applicationStandard
Poles1P
Pole contact composition1 NO
[In] rated current32 A
Network typeAC
[Uc] control circuit voltage230...240 V AC 50/60 Hz
110 V DC

Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage250 V AC 50/60 Hz
Control typeCoil deconnection
Remote and manual control
control signal typeImpulse
Switching frequency100 switching operations/day
5 switching operations/minute
impulse duration50 ms...1 s
Remote control typeIlluminated push-button
local signallingON/OFF indication
mounting modeFixed
mounting supportDIN rail
9 mm pitches2
Height84 mm
Width18 mm
Depth60 mm
Electrical durabilityAC-21: 50000 cycles
AC-22: 20000 cycles
Connections - terminalsControl circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid
Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end
Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible
Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule
Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² rigid
Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² rigid with cable end
Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² flexible
Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² flexible with ferrule
Wire stripping length11 mm
Tightening torque1.2 N.m
Range compatibilityActi 9 iATEt
Acti 9 iATL4
Acti 9 iATLc
Acti 9 iATLc+s
Acti 9 iATLm
Acti 9 iATLs
Acti 9 iATLz
Acti 9 iATLc+c
Acti 9 iATL24
Acti 9 iETL iTL 32

Environment
StandardsEN 669-1
EN 669-2-2
Product certificationsGOST
Quality labelsVDE
IMQ
KEMA
NF
CEBEC
Noise level60 dB
IP degree of protectionIP20 conforming to IEC 60529 (on opening)
IP40 conforming to IEC 60529 (in enclosure)
Pollution degree3
Tropicalisation2
Relative humidity95 % at 55 °C
Ambient air temperature for operation-20…50 °C
ambient air temperature for storage-40…70 °C
