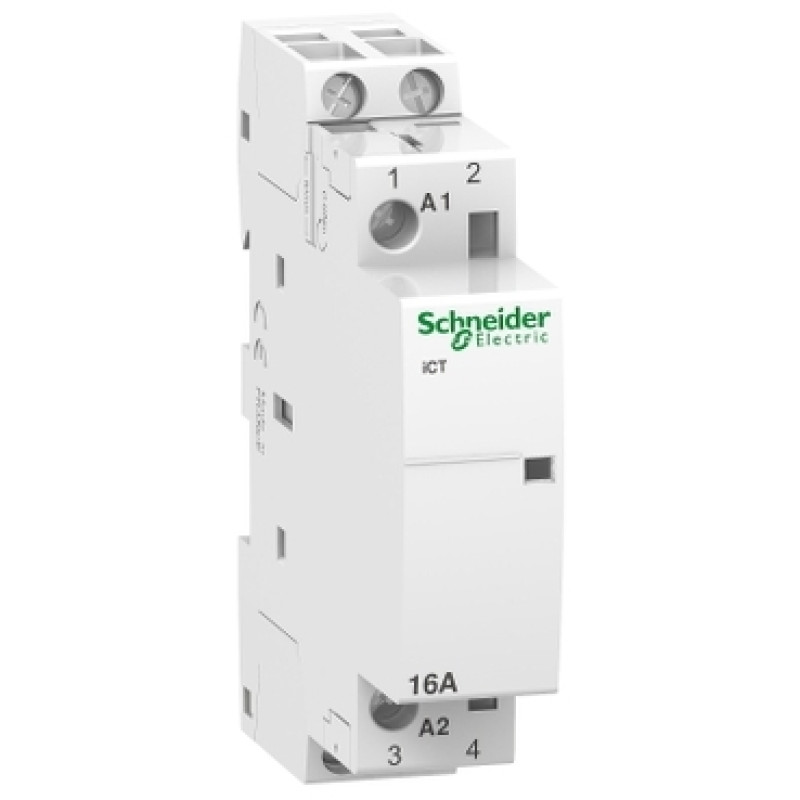

Schneider iCT contactor - 2NO - Double pole - 16A - (A9C22712)

1470 - 50% Off ₹ 2940

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The In rated current is 16A for AC-7a and 6A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: NORISYS

Main
range of productActi9
Product nameActi9 iCT
product or component typeContactor
Device short nameiCT
Device applicationMotor-heating-lighting
Poles2P
[Ie] rated operational current16 A AC-7A
6 A AC-7B
Pole contact composition2 NO
Network typeAC
Control typeRemote control
[Uc] control circuit voltage230...240 V AC 50 Hz

Complementary
Network frequency50 Hz
[Ue] rated operational voltage250 V AC 50 Hz
Maximum power1.2 W at 250 V AC
[Ui] rated insulation voltage500 V AC 50 Hz
[Uimp] rated impulse withstand voltage4 kV
control signal typeMaintained
Switching frequency100 switching operations/day
local signallingAction indicator
Hold-in power consumption in VA2.7 VA
Inrush power in VA9.2 VA
mounting modeClip-on
mounting support35 mm symmetrical DIN rail
9 mm pitches2
Height81 mm
Width18 mm
Depth68.5 mm
ColourWhite
Mechanical durability1000000 cycles
Electrical durability100000 cycles IEC/EN 61095 16 A 50 Hz AC-7A
30000 cycles IEC/EN 61095 6 A 50 Hz AC-7B
30000 cycles IEC/EN 61095 50 Hz AC-7C
100000 cycles EN/IEC 60947-4-1 50 Hz AC-1
30000 cycles EN/IEC 60947-4-1 50 Hz AC-3
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
Connections - terminalsControl circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid
Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible
Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid
Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid
Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
Tightening torqueControl circuit: 0.8 N.m
Power circuit: 0.8 N.m
Product compatibilityIACTs
Compatibility codeICT
Market segmentSmall commercial
Residential

Environment
StandardsIEC/EN 61095
Noise level30 dB
Heat dissipation0.9 W at 50/60 Hz
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Pollution degree2
Tropicalisation2 conforming to IEC 60068-1
2
Relative humidity95 % at 55 °C
Operating altitude2000 m
Ambient air temperature for operation-5…60 °C
ambient air temperature for storage-40…70 °C
