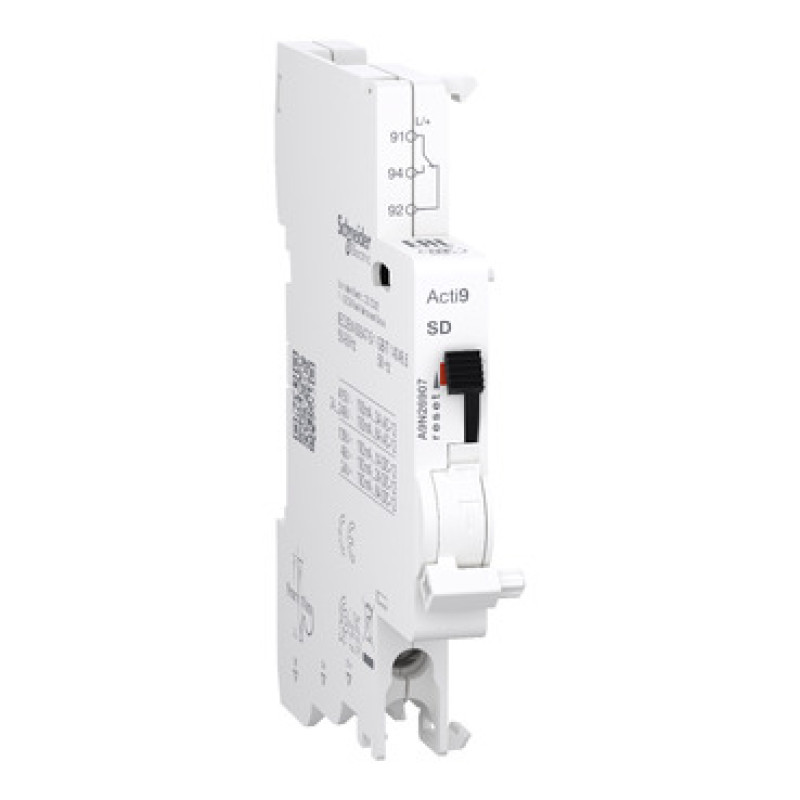

| range of product | Acti9 |
|---|---|
| product or component type | Fault contact |
| Device short name | SD |
| Signal contacts composition | 1 C/O |
| [In] rated current | 0.1…6 A at 24...250 V, AC 50/60 Hz 0.1…6 A at 24...240 V, AC 50/60 Hz 0.1…3 A at 415 V, AC 50/60 Hz 0.1…6 A at 24 V, DC 0.1…2 A at 48 V, DC 0.1…1.5 A at 60 V, DC 0.1…1 A at 130 V, DC |
| 9 mm pitches | 1 |
| [Ui] rated insulation voltage | 500 V |
|---|---|
| [Uimp] rated impulse withstand voltage | 4 kV |
| Local signalling | Mechanical indicator |
| Mounting mode | Clip-on |
| Mounting location | Left side of circuit-breaker |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 85.3 mm |
| Width | 9 mm |
| Depth | 68 mm |
| net weight | 30 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m bottom |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 |
|---|---|
| Product certifications | CE UKCA |
| Quality labels | EAC CCC |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
