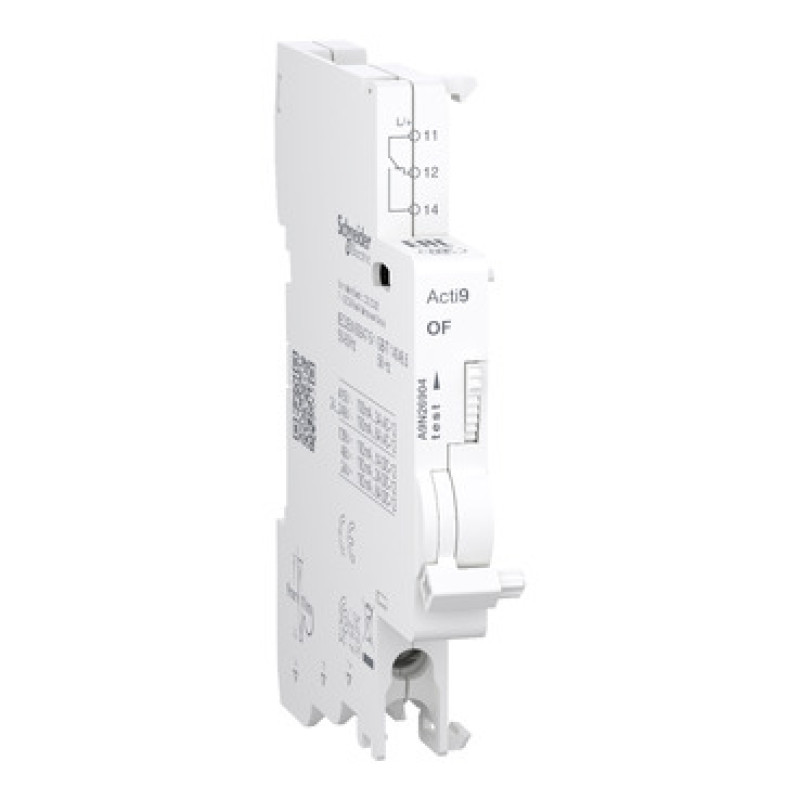

Schneider Indication Auxiliaries - Acti9 A9A iOF bottom wiring (0.1 - 6A ) (A9N26904)

₹ 707 - 50% Off ₹ 1413

Inclusive of all taxes

Product will be deliver within 3-4 days.

This is an auxiliary contact from the Acti9 series. It has 1 changeover (C/O) signal contact. Rated current: 0.1 A to 6 A at various voltages (24 VAC to 415 VAC and 24 VDC to 130 VDC). Mounting location: Left side of circuit-breaker mounting support on DIN rail. Suitable for Acti9 circuit breakers.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 241
Product Tags: new product, top product,

Description
Return Policy

Main
range of product	Acti9
product or component type	OC contact
Device short name	OF
Signal contacts composition	1 C/O
[In] rated current	0.1…6 A at 24...250 V, AC 50/60 Hz 0.1…6 A at 24...240 V, AC 50/60 Hz 0.1…3 A at 415 V, AC 50/60 Hz 0.1…6 A at 24 V, DC 0.1…2 A at 48 V, DC 0.1…1.5 A at 60 V, DC 0.1…1 A at 130 V, DC
9 mm pitches	1

Complementary
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
mounting mode	Clip-on
mounting location	Left side of circuit-breaker
mounting support	DIN rail
Comb busbar and distribution block compatibility	Top: YES
Height	85.3 mm
Width	9 mm
Depth	68 mm
net weight	30 g
Colour	White
Connections - terminals	Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length	9 mm
Tightening torque	1 N.m bottom

Environment
Standards	EN/IEC 60947-5-1 GB/T 14048.5
Product certifications	CE UKCA
Quality labels	EAC CCC
IP degree of protection	IP20
Pollution degree	3
Tropicalisation	2
Ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
