| Range | Acti9 |
|---|---|
| product or component type | Add-on residual current devices |

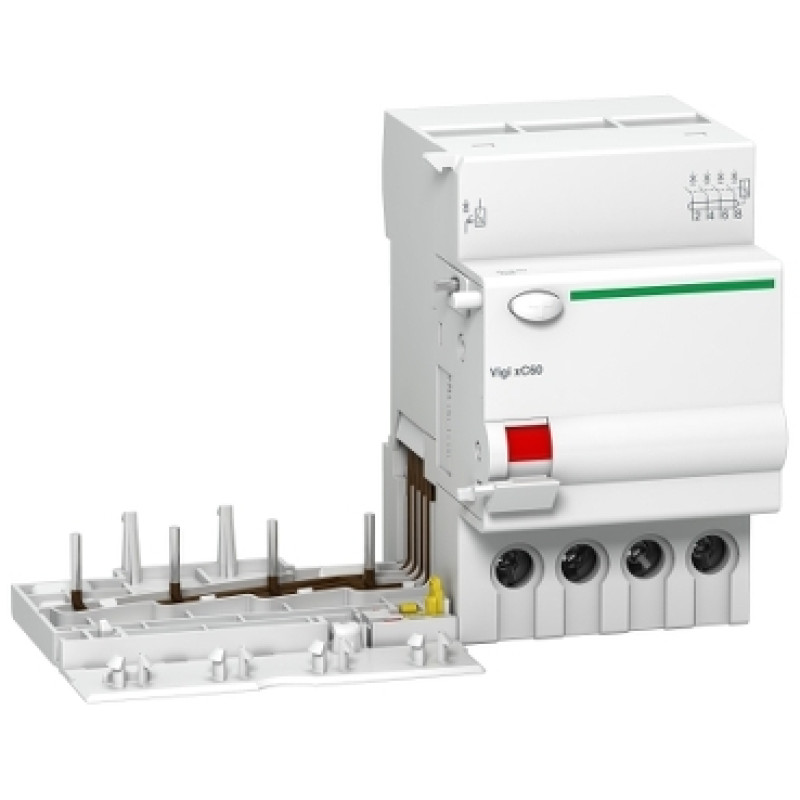

| Device short name | Vigi xC60 |
| poles description | 4P |
| [In] rated current | 25 A |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth leakage protection type | Type AC |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1 400...415 V conforming to EN/IEC 61009-2-1 |
| Standards | EN/IEC 61009-2-1 EN/IEC 61009-1 |
| 9 mm pitches | 6 |
| Device location in system | Outgoer |
|---|---|
| Residual current tripping technology | Voltage independent Electromechanical |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Range compatibility | Acti 9 Acti9 iC60 |
| local signalling | Red indicator light on the front face |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| Electrical connection to mcb | By screws |
| Height | 87 mm |
| Width | 126 mm |
| Depth | 74.5 mm |
| net weight | 215 g |
| Connections - terminals | Tunnel type terminal downside for 1 cable(s) 1…25 mm² rigid without cable end Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible without cable end Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible with cable end |
| Wire stripping length | 14 mm for bottom connection |
| Tightening torque | 2 N.m bottom |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree | 3 |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A |
| Ambient air temperature for operation | -5…60 °C |
| ambient air temperature for storage | -40…85 °C |
