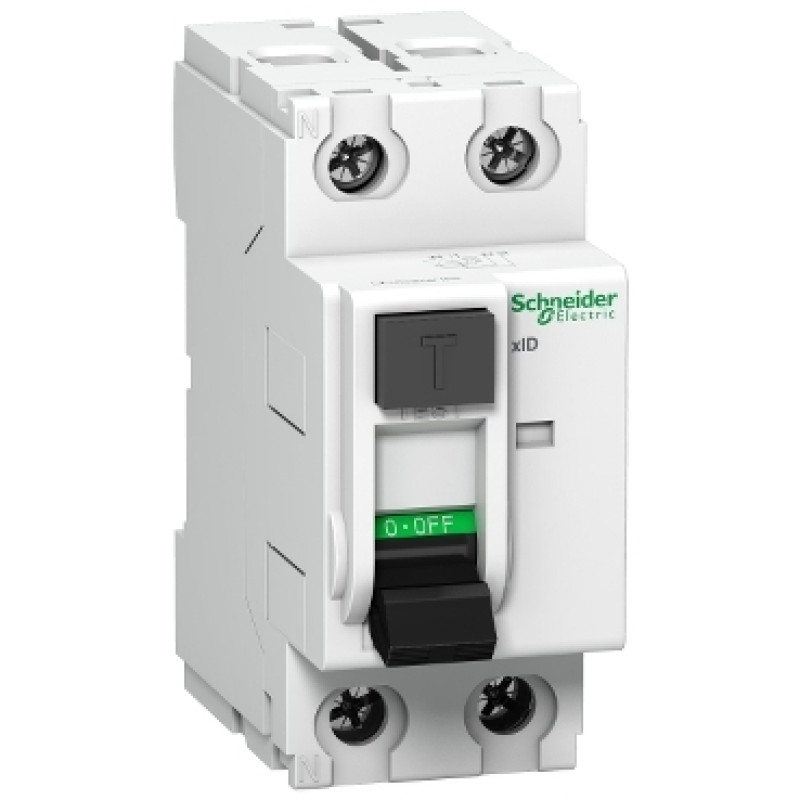

Schneider - RCCBs xID SI - Double Pole - (25A - 30mA ) Type -SI

5358 - 50% Off ₹ 10715

Inclusive of all taxes

Product will be deliver within 3-4 days.

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 30mA with a A-SI type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It has increased immunity from electrical interference reducing the risk of nuisance tripping. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C.

Color:
  • Brand: SCHNEIDER
  • Category: Switchgears (MCB's, RCCB's, DBs etc)
  • Sub Category: SCHNEIDER
  • Product Code: 216

Main
RangeActi9
Product nameActi9 xID
product or component typeResidual current circuit breaker (RCCB)
Device short namexID
poles description2P
Neutral positionLeft
[In] rated current25 A
Network typeAC
Earth-leakage sensitivity30 mA
Earth-leakage protection time delayInstantaneous
Earth-leakage protection classType A-SI (Super Immunised)
Rated breaking and making capacity500 A conforming to EN/IEC 61008-1
Suitability for isolationYes

Complementary
Network frequency50 Hz
[Ue] rated operational voltage230...240 V AC 50 Hz
[Ui] rated insulation voltage500 V AC 50 Hz
[Uimp] rated impulse withstand voltage6 kV
Contact position indicatorYes
Control typeToggle
local signallingON, OFF, fault trip
mounting modeClip-on
mounting supportDIN rail
Comb busbar and distribution block compatibilityDownside: biconnect
Connection pitch18 mm between phases
9 mm pitches4
Height81 mm
Width36 mm
Depth75 mm
net weight210 g
ColourWhite
Mechanical durability4000 cycles
Electrical durability4000 cycles
Locking options descriptionPadlocking device
Connections - terminalsTunnel type terminals (top or bottom) 1…35 mm² rigid
Tunnel type terminals (top or bottom) 1…25 mm² flexible
Wire stripping length14 mm for top or bottom connection
Tightening torque3.5 N.m top or bottom
Environment
StandardsEN 61008-2-1
IEC 61008-2-1
EN/IEC 61008-1
Product certificationsISI
IP degree of protectionIP20
Pollution degree2
Tropicalisation2 conforming to IEC 60068-1
Relative humidity95 % at 55 °C
Ambient air temperature for operation-5…40 °C
ambient air temperature for storage-40…85 °C
