Range | Acti9 |
---|---|

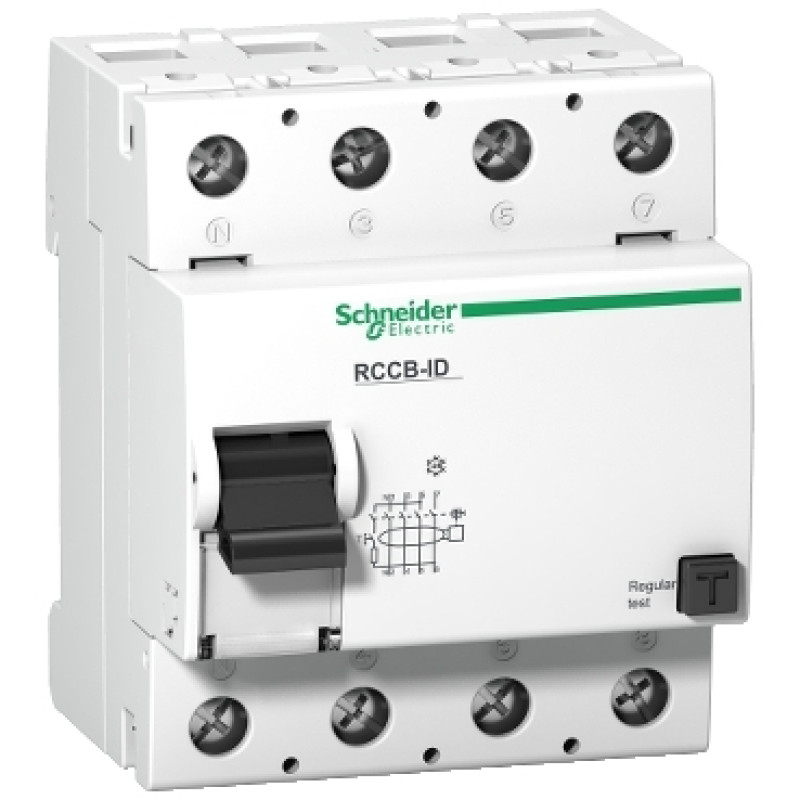

Product name | Acti9 RCCB-ID |
product or component type | Residual current circuit breaker (RCCB) |
Device short name | RCCB-ID |
Poles description | 4P |
Neutral position | Left |
[In] rated current | 125 A |
Network type | AC |
Earth-leakage sensitivity | 100 mA |
Earth-leakage protection time delay | Instantaneous |
Earth-leakage protection class | Type AC |
Rated breaking and making capacity | Im = 1250 A 400 V conforming to IEC 61008 |
Rated conditional short-circuit current | Inc 10 kA 125 A |
Device location in system | Outgoer |
---|---|
Network frequency | 50/60 Hz |
[Ue] rated operational voltage | 400 V AC 50 Hz conforming to IEC 61008 |
Residual current tripping technology | Electromechanical |
[Ui] rated insulation voltage | 440 V AC 50 Hz conforming to IEC 61008-1 |
[Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 61008-1 |
Control type | Toggle |
Mounting mode | Fixed |
Mounting support | 35 mm symmetrical DIN rail |
Connection pitch | 18 mm between phases |
9 mm pitches | 8 |
Height | 86 mm |
Width | 72 mm |
Depth | 76 mm |
net weight | 420 g |
Colour | Grey |
Mechanical durability | 5000 cycles |
Electrical durability | 2000 cycles |
Provision for padlocking | Padlockable |
Connections - terminals | Tunnel type terminals2 cable(s) 1.5…16 mm² flexible Tunnel type terminals2 cable(s) 1.5…16 mm² rigid Tunnel type terminals1 cable(s) 1.5…50 mm² rigid Tunnel type terminals1 cable(s) 1.5…35 mm² flexible Tunnel type terminals1 cable(s) 1.5…35 mm² flexible with ferrule Tunnel type terminals2 cable(s) 1.5…16 mm² flexible with ferrule |
Wire stripping length | 11 mm |
Tightening torque | 3 N.m |
Standards | IEC 61008 IEC 60947-1 IEC 60947-3 |
---|---|
IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
Pollution degree | 3 |
Tropicalisation | 2 conforming to IEC 61008 |
Relative humidity | 95 % at 55 °C |
Operating altitude | 2000 m |
Ambient air temperature for operation | -25…40 °C |
ambient air temperature for storage | -40…85 °C |
