Range | Acti9 |
---|---|

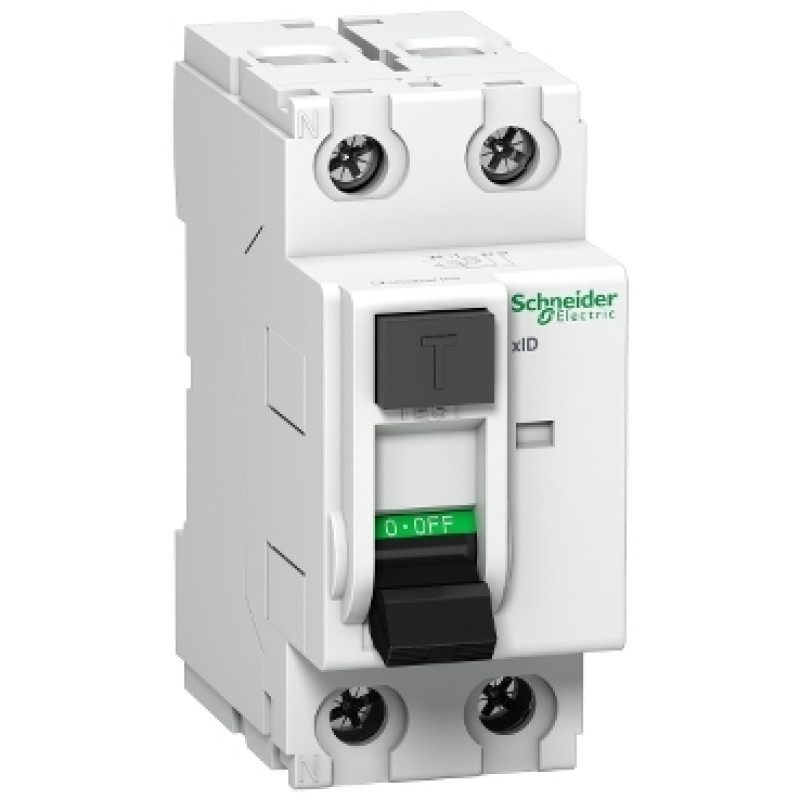

Product name | Acti9 xID |
product or component type | Residual current circuit breaker (RCCB) |
Device short name | xID |
Poles description | 2P |
Neutral position | Left |
[In] rated current | 40 A |
Network type | AC |
Earth-leakage sensitivity | 100 mA |
Earth-leakage protection time delay | Instantaneous |
Earth-leakage protection class | Type AC |
Rated breaking and making capacity | 500 A conforming to EN/IEC 61008-1 |
Suitability for isolation | Yes |
Network frequency | 50 Hz |
---|---|
[Ue] rated operational voltage | 230...240 V AC 50 Hz |
[Ui] rated insulation voltage | 500 V AC 50 Hz |
[Uimp] rated impulse withstand voltage | 6 kV |
Contact position indicator | Yes |
Control type | Toggle |
Local signalling | ON, OFF, fault trip |
Mounting mode | Clip-on |
Mounting support | DIN rail |
Comb busbar and distribution block compatibility | Downside: biconnect |
Connection pitch | 18 mm between phases |
9 mm pitches | 4 |
Height | 81 mm |
Width | 36 mm |
Depth | 75 mm |
net weight | 210 g |
Colour | White |
Mechanical durability | 4000 cycles |
Electrical durability | 4000 cycles |
Locking options description | Padlocking device |
Connections - terminals | Tunnel type terminals (top or bottom) 1…35 mm² rigid Tunnel type terminals (top or bottom) 1…25 mm² flexible |
Wire stripping length | 14 mm for top or bottom connection |
Tightening torque | 3.5 N.m top or bottom |
Standards | EN/IEC 61008-1 EN 61008-2-1 IEC 61008-2-1 |
---|---|
Product certifications | ISI |
IP degree of protection | IP20 |
Pollution degree | 2 |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative humidity | 95 % at 55 °C |
Ambient air temperature for operation | -5…40 °C |
ambient air temperature for storage | -40…85 °C |
